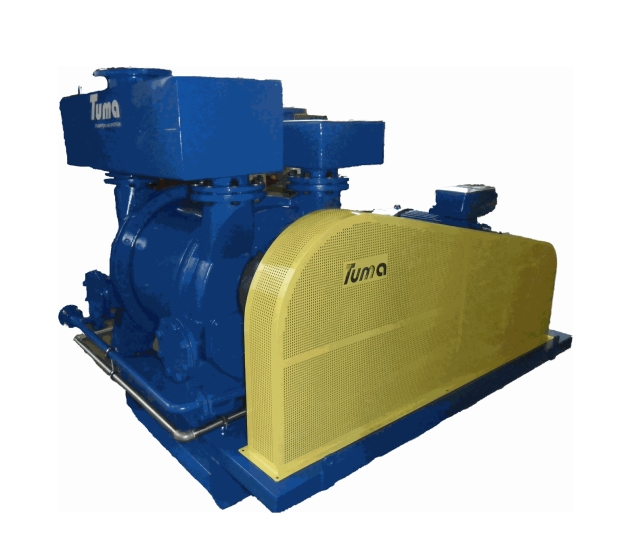

Liquid ring vacuum pumps, Base plate pumps
Vacuum pumps in base plate design with mechanical seal.
Downloads
Brochure:
Direct inquiry
We are happy to help you!
Phone +43 (0)1 914 93 40
Specifications
| Flow | max. 30 000 m³/h |
| Vacuum pressure | max. 33 mbar abs (Operational liquid water) |
| Temperature | max. 120 °C |
Material version
| Housing parts | Bronze/Stainless steel/GG25/SNF coated |
| Wheel | Brass/Bronze/Stainless steel/Cr steel |
| Shaft seal | Mechanical seal, stuffing box Directive 94/9/EG (ATEX 95): Base plate pumps VH, Ex II 2G Compressors and special units on request. |
Application
- Extruder degassing
- Fish and poultry processing
- Solvent recovery
- Bottling plants
- Seawater desalination
- Meat processing
- Gas sterilization
- Milk collection vehicles
- Groundwater lowering and well recovery systems
- Tabacco humidification
Application
- Wood drying
- Suction of oil residues
- Impregnation
- Calibration of plastic profiles
- Steam sterilization
- Sludge suction vehicles
- Steam turbines and engines
- Preservation of food
- Degassing pastes
- Ventilation of centrifugal pumps
