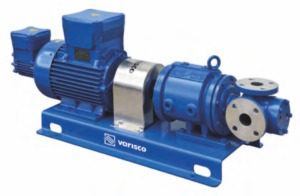

Gear pumps
For the transport of liquids of any viscosity, even if the liquids contain abrasive dust, but no solids.
Downloads
Brochure:
Direct inquiry
We are happy to help you!
Phone +43 (0)1 914 93 40
Specifications
| Flow | Min. 60 liters/h to max. 220 m³/h |
| Head | max. 20 bar |
| Temperature | max. 300 °C |
| Viscosity | max. 60000 cSt |
Material version
| Housing parts | GG25/Steel/Stainless Steel |
| Shaft seal | Mechanical seal, packing or magnetic coupling |
| Construction | Base plate units with flexible coupling and motor |
| Options | Heating jacket, bypass valve Directive 94/9/EG (ATEX 95): Ex II 2G |
Application
- Chocolate
- Bitumen
- Dispersion also with fillers
- Cream
- Paints
- Adhesives
- Resins
- Fat
- Heating oil
- Molasses
- Syrup
- Solvent
- Soap
- Tar
- Glucose
- Mineral oil
- Crude oil
- Silicone oil
- Vegetable oil
- Brine
- Alkalis
- Viscose
- Strength
- Sourdough
- And many more.
Advantage
- Dry self-priming
- Good controllability because positive displacement pump
- Many options
- Robust built for heavy usage
