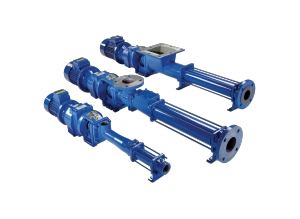

Progressive cavity pumps NOV MONO

A competitively priced progressing cavity pump, with a compact construction and maximum performance characteristics.

The progressing cavity pumps MONO Compact C series was developed to provide a pump that is as compact as possible and safe for maximum requirements.

Downloads

Brochure:

MONO Compact C Sales Brochure

MONO Compact C Technical Manual

Direct inquiry

We are happy to help you!
Phone +43 (0)1 914 93 40

Kontaktformular

Specifications

Min. capacity	1 m³/h
Max. capacity	440 m³/h
Min. viscosity	1 cSt
Max. viscosity	50000 cSt
Min. temperature	-10° Celsius
Max. temperature	100° Celsius
Max. differential pressure	24 bar

Materials of construction

Alignment	Vertical, horizontal
Shaft seal	Mechanical seal
Material	Cast iron, stainless steel
Assembly type	Directly, bearing chair

Application

Domestic and industrial effluents
Hydrated lime slurry
Sludge
Shear sensitive latex emulsion
Milk curds, sauces, fruit juices
Industrial chemicals and detergents
Starch slurries
Coating clays, gypsum and silicate
Paper stocks
Agricultural slurries

Advantage

Good suction capacity of more than 8 m
Variable speeds for dispensing applications
Encapsulated pin joints enable safe applications and a long service life
High reproducibility of the delivery volume
Variety of rotor and stator materials for a wide variety of applications
Rotor coatings increase abrasion resistance and reduce maintenance
Special gear and motor connections facilitate pump assembly
Available in gray cast iron or stainless steel
